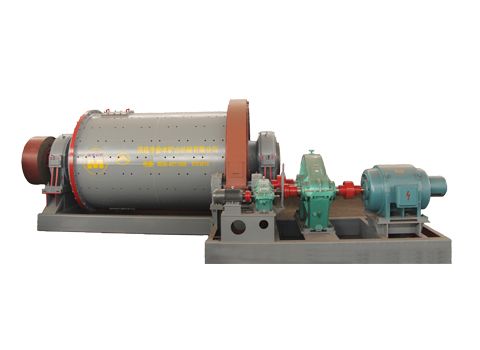

轴承节能球磨机
产品特点
主轴承采用了大直径双列调心滚子轴承，代替原来的滑动轴承，减少了磨擦，降低能耗，磨机启动容易。
保留普通磨机的端盖结构形式，大口径进出料口，处理量大。
- 订货说明
用户选用时，注明球磨机旋向、排料方式。
|
型号 |
规格 Standards |
筒体转速 (r/min) Revolution of the shell |
装球重量 |
给料粒度 Size of supplying minerals |
产量 |
配套电动机 Cooperate Motor |
外形尺寸 (mm) Dimension (LxWxH) |
重量 |
|
|
型号 Model |
功率(kW) Power | ||||||||
|
GM0912 |
0900x1200 |
41.6 | 1.0 | 0~25 |
0.3 ~0.9 |
Y180L-8 |
11 | 3843x1850x1400 |
4210 |
|
GM0921 |
0900x2100 |
41.6 | 1.8 | 0~25 |
0.6 ~1.5 |
Y180L-8 |
15 | 4743x1850x1400 |
6660 |
|
GM1224 |
01200x2400 |
35.1 | 3.7 | 0~25 |
1.6 ~4.1 |
Y280S-8 |
37 | 5540x2300x1850 |
10020 |
|
GM1228 |
01200x2800 |
35.1 | 4.3 | 0~25 |
1.9 ~4.8 |
Y280M-8 |
45 | 5940x2300x1850 |
10935 |
|
GM1232 |
01200x3200 |
35.1 | 4.9 | 0~25 |
2.2 ~5.5 |
Y280M-8 |
45 | 6340x2300x1850 |
11230 |
|
GM1244 |
01200x4400 |
35.1 | 7.3 | 0~25 |
3.0 ~7.5 |
Y135S-8 |
55 | 7540x2300x1850 |
13210 |
|
GM1324 |
01300x2400 |
30.2 | 4.5 | 0~25 |
1.5 ~3.5 |
Y280S-8 |
37 | 5035x2370x1880 |
10210 |
|
GM1328 |
01300x2800 |
30.2 | 5.2 | 0~25 |
2.0 ~4.5 |
Y280M-8 |
45 | 5435x2370x1880 |
11290 |
| GM1334 | 01300x3400 | 30.2 | 6.5 | 0~25 | 2.2 ~ 5.0 | Y315S-8 | 55 | 6035 x 2370 x 1880 | 13117 |
| GM1530 | 01500x3000 | 30.7 | 9.0 | 0~25 | 3.5 ~8.0 | JR117-8 | 80 | 7430 x 2930 x 2060 | 16843 |
| GM1536 | 01500x3600 | 30.7 | 11.0 | 0~25 | 4.5 ~10.0 | JR125-8 | 95 | 8030 x 2930 x 2060 | 18649 |
| GM1557 | 01500x5700 | 30.7 | 17.0 | 0~25 | 7.0 ~15.5 | JR127-8 | 130 | 10130 x 2930 x 2060 | 23597 |
| GM1563 | 01500x6300 | 30.7 | 19.0 | 0~25 | 8.0-17.0 | JR128-8 | 155 | 10730 x 2930 x 2060 | 24390 |
| GM1830 | 01830x3000 | 25.04 | 13.0 | 0~25 | 3.0 ~17.0 | JR127-8 | 130 | 9525 x 3960 x 2250 | 29490 |
| GM1836 | 01830x3600 | 25.04 | 15.0 | 0~25 | 4.0-21.5 | JR128-8 | 155 | 10125 x 3960 x 2250 | 31600 |
| GM1840 | 01830x4000 | 25.04 | 17.0 | 0~25 | 4.5-24.0 | JR128-8 | 155 | 10525x3960x2250 | 32700 |
| GM1844 | 01830x4400 | 25.04 | 19.0 | 0~25 | 5.2-26.0 | JR136-8 | 180 | 10925x3960x2250 | 34210 |
| GM1852 | 01830x5200 | 25.04 | 21.0 | 0~25 | 6.5-32.5 | JR136-8 | 180 | 11725x3960x2250 | 37715 |
| GM1864 | 01830x6400 | 25.04 | 27.0 | 0~25 | 8.0-40.0 | JR137-8 | 210 | 12925x3960x2250 | 42440 |
| GM2130 | 02100x3000 | 23.8 | 20.0 | 0~25 | 4.0 - 30.0 | JR136-8 | 180 | 8475 x 4060 x 3400 | 41965 |
| GM2136 | 02100 x 3600 | 23.8 | 21.0 | 0~25 | 5.0-37.0 | JR137-8 | 180 | 9225 x 4060 x 3400 | 44551 |
| GM2145 | 02100 x 4500 | 23.8 | 25.0 | 0~25 | 5.6-42.0 | JR1410-8 | 245 | 9975 x 4060 x 3400 | 49230 |
| GM2436 | 02400 x 3600 | 23.0 | 26.6 | 0~25 | 6.5-82.0 | JR1410-8 | 320 | 9770 x 5005 x 3970 | 63684 |
| GM2445 | 02400 x 4500 | 23.0 | 32.5 | 0~25 | 8.0 ~ 100 | JR158-8 | 380 | 10570 x 5005 x 3970 | 72284 |
| GM2736 | 02700 x 3600 | 21.7 | 34.0 | 0~25 | 15.0 ~115 | JR1512-8 | 420 | 10575x5610x4500 | 88400 |
| GM2745 | 02700 x 4500 | 21.7 | 40.0 | 0~25 | 17.5-135 | JR1512-8 | 475 | 11175x5610x4500 | 90420 |
| GM3230 | 03200 x 3000 | 18.7 | 44.0 | 0~25 | 50.0 ~ 90 | TDMK500-36 | 500 | 11000x7200x5700 | 124000 |
| GM3245 | 03200 x 4500 | 18.7 | 65.0 | 0~25 | 100 ~145 | TDMK630-36 | 630 | 13000x7200x5700 | 145000 |
| GM3645 | 03600 x 4500 | 17.5 | 76.0 | 0~25 | 156.8 ~235.2 | TM1000-36/2600 | 1000 | 15000x7200x6326 | 135000 |
| GM3650 | 03600 x 5000 | 17.5 | 86.0 | 0~25 | 174.4-261.6 | TM11250-40/32 50 | 1250 | 17157x7755x6326 | 145000 |
| GM3660 | 03600 x 6000 | 17.5 | 102 | 0~25 | 184-276 | TM11250-40/32 50 | 1250 | 19000 x 7755 x 6326 | 154000 |
| GM4070 | 04000 x 7000 | 16.7 | 115.4 | 0~25 | 200~320 | TM20000-40/3250 | 2000 | 18100 x 7890 x 6730 | 350000 |
| GM4669 | 04600 x 6900 | 15 | 185 | 0~25 | 260-380 | 2300 | 286000 | ||
| GM4883 | 04800 x 8300 | 15 | 240 | 0~25 | 310-430 | TM-2000-30 | 2000 | 301000 | |
| GM5070 | 05000 x 7000 | 14.4 | 227 | 0~25 | 360~480 | TM-3000-30 | 3000 | 335000 | |
| GM5585 | 05500 x 8500 | 13.7 | 300 | 0~25 | 410~530 | TM-4500-30 | 4500 | 536000 | |
| GM6095 | 06OOO x 9500 | 13 | 462.6 | 0~25 | 460~580 | TM-6000-30 | 6000 | 838000 | |
