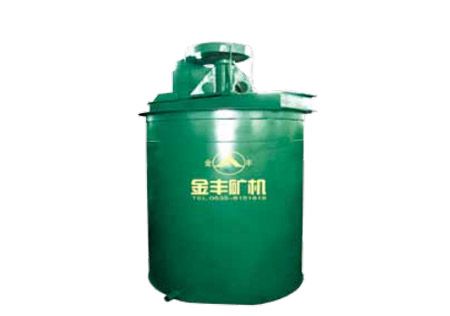

RJW chemical reagent agitating tank
[Catalog:Agitating tank] [Date:2017-11-7 12:08:25] [Hits:] [Return]
Features
It is suitable for being used a common agitating tank in the separation plant for mixing the chemical reagent, with uniquely designed impeller, uniform agitation and good mixing result.
- Notes for model selection
We can design and make non-standard products for different types of chemical reagent as per the customer's requirements.
If there is no special requirement, we will make the product according to the specifications of a normal model.
It is suitable for being used a common agitating tank in the separation plant for mixing the chemical reagent, with uniquely designed impeller, uniform agitation and good mixing result.
- Notes for model selection
We can design and make non-standard products for different types of chemical reagent as per the customer's requirements.
If there is no special requirement, we will make the product according to the specifications of a normal model.
| Model | （m3) Effective capacity | Impeller | Motor | （kg ) Weight | ||
| (r/mir) Rotating speed | （mm ) Diameter | Model | （kW ) Power | |||
| RJW-500 x 600 | 0.094 | 493 | 200 | Y180M1-4 | 0.55 | 101 |
| RJW-750×750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 230 |
| RJW-750×1000 | 0.33 | 530 | 240 | Y100L-6 | 1.5 | 352 |
| RJW-1000×1000 | 0.77 | 530 | 250 | Y100L-6 | 1.5 | 476 |
| RJW-1500×1500 | 2.3 | 320 | 380 | Y112M-6 | 2.2 | 973 |
| RJW-2000×2000 | 5.46 | 230 | 570 | Y132M1-6 | 4 | 2112 |
