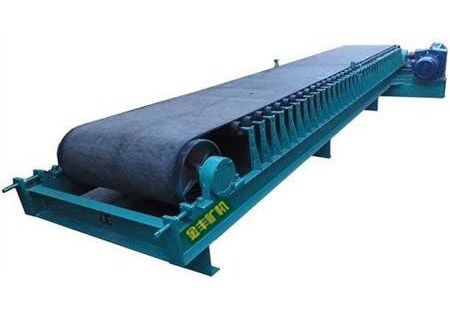

Belt feeder

[Catalog:Feeding equipment] [Date:2017-11-7 12:08:24] [Hits:] [Return]

Features
Belt feeder is a kind of belt conveying equipment, with a shorter length, and lower belt speed, suitable for conveying powder materials.
- Notes for model selection
While placing your order, make sure to specify the belt model and length.
The mounted position of the motor can be changed to a different direction as required by the customer. If there is no special requirement, the feeder will be made in accordance with standard drawings.
We can design and make the feeders of different lengths as per customers’ requirements.

Model	(mm) Belt width	(mm) Center distance Of head or Drum wheel	(mm) Diameter of Head and tail wheel	(t/h) Feed Capacity	(mm) Feed Particle	Motor Model	(kw) Motor Power	(kg) Weight
500x1000	500	1000	219	10-100	0~50	YCT112-4B	0.75	266
500x1300	500	1300	219	10-100	0~50	YCT112-4B	0.75	345
500x1500	500	1500	219	10-100	0~50	YCT132-4A	1.1	450
500x4000	500	4000	219	10-100	0~50	YCT160-4A	2.2	660
650x2600	650	2600	219	77	0~50	YCT160-4B	2.2	560
800x4000	800	4000	219	25-250	0~80	YCT160-4A	2.2	934
800x4500	800	4500	400	200-450	0~80	YCT160-4A	2.2	1200
1000x2000	1000	2000	400	200-450	0~75	YCT160-4B	3.0	1549
1000x2500	1000	2500	400	200-450	0~100	YCT160-4B	3.0	2105
1000x6000	1000	6000	400	200-450	0~100	YCT225-4A	11	5214
