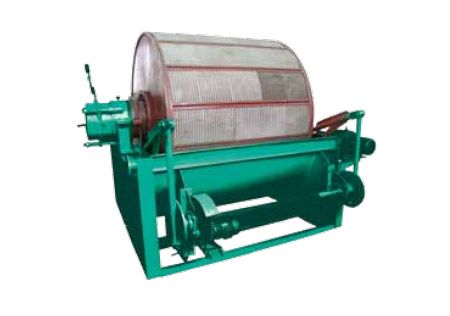

GW cylinder external filter
GW cylinder external filter is a kind of common filter, mainly used for filtering the ore pulp with fine grain size and requiring low water content.
Through adjusting the motor, variable speed control can be achieved. It has
the advantages like simple structure, low price, convenient operation, less maintenance required and less wearable parts.
- Notes for Selection
It should be matched with air-extraction system and air-water separation system (automatic water discharging filtrate cylinder). The matching products should be ordered separately (vacuum pump, pressure water tank system of air extractor).
|
Standard Model |
Fi Iterate area (m2) |
(r/min) Speed of cylinder |
Agitating frequence |
m |
Gear box |
Motor Power |
Dimension (LxWxH) |
Total |
||
|
Cylinder |
Agitator |
Cylinder |
Agitator |
|||||||
|
GW-3 |
3 |
0.066-0.662 |
25 |
0.3 ~1 .2 |
YCT132-4A |
XWD4-59-0.8 |
1.1 |
0.8 |
0.8 |
2500 |
|
GW-5 |
5 |
0.066 ~ 0.662 |
25 |
0.5 ~2 |
YCT132-4A |
XWD4-59-0.8 |
1.1 |
0.8 |
0.8 |
2756 |
|
GW-8 |
8 |
0.13-0.26 |
23 |
0.7 ~3.8 |
YCT160-4B |
XWD4-59-0.8 |
3 |
0.8 |
0.8 |
5000 |
|
GW-10 |
10 |
0.13-0.26 |
23 |
1~4 |
YCT160-4B |
XWD4-59-0.8 |
3 |
0.8 |
0.8 |
5200 |
|
GW-12 |
12 |
0.3 ~0.2 |
23 |
1 ~4.8 |
YCT160-4B |
XWD4-59-0.8 |
3 |
0.8 |
0.8 |
5910 |
|
GW-20 |
20 |
0.14-0.54 |
23 |
3~8 |
YCT200-4A |
XWD5-59-1.5 |
5.5 |
1.5 |
1.5 |
10600 |
