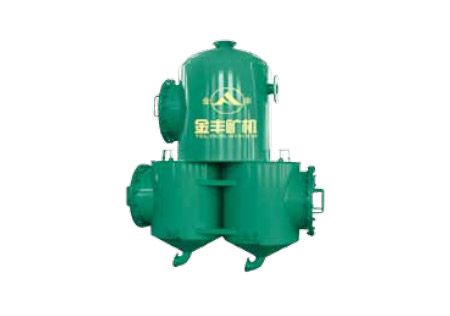

Automatic water discharging filtrate cylinder
[Catalog:Filtering equipment] [Date:2017-11-7 12:08:25] [Hits:] [Return]
Features
This product is an automatic water discharging filtrate cylinder with double-cycle barrel and air-liquid separation cylinder.
There is a floating cylinder inside it, for realizing cycling and discharging the water automatically. It is used in the filtering system, for realizing air water separation. When the product capacity of the filter is 0.2-0.8t/m2·h, feeding concentration is 45%, and water content of filter cake is 10%, turnover time of filtrate discharging is 5-17 minutes.
- Notes for Selection
This product can match GW3-GW 20 filter. The specifications like 0.2m3 and 0.4m3 are currently available. We can also make special design according to a customer’s demands.
Notes for the Models
Currently, we produce the filtrate cylinders of two specifications, i.e. 0.2m3 and 0.4m3, We can also make special design according to the customer’s demands.
This product is an automatic water discharging filtrate cylinder with double-cycle barrel and air-liquid separation cylinder.
There is a floating cylinder inside it, for realizing cycling and discharging the water automatically. It is used in the filtering system, for realizing air water separation. When the product capacity of the filter is 0.2-0.8t/m2·h, feeding concentration is 45%, and water content of filter cake is 10%, turnover time of filtrate discharging is 5-17 minutes.
- Notes for Selection
This product can match GW3-GW 20 filter. The specifications like 0.2m3 and 0.4m3 are currently available. We can also make special design according to a customer’s demands.
Notes for the Models
Currently, we produce the filtrate cylinders of two specifications, i.e. 0.2m3 and 0.4m3, We can also make special design according to the customer’s demands.
