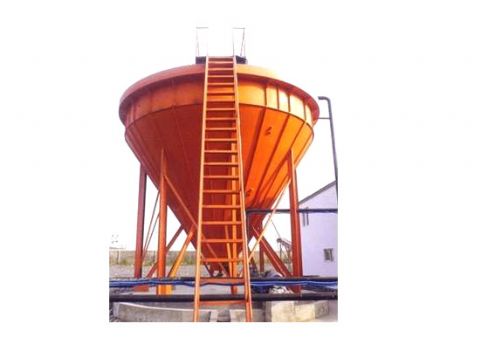

GX high efficiency thickener

[Catalog:Thickening equipment] [Date:2017-11-7 12:08:25] [Hits:] [Return]

Features
GX high efficiency thickener is a kind of semi-high efficiency thickener in case of no flocculent is added. Compared with common thickener, it has the following structural features: long intermediate receiving barrel; with a large-diameter receiving tray arranged at the bottom; uniform, stable and smooth feeding.
A gettering and storage tank is arranged for eliminating air bubbles in the ore pulp, which has a large processing capacity and makes the underflow concentration high.
- Notes for Selection
Its performance is better than that of common thickener if it is used separately without flocculent added.
The device for adding flocculent should be ordered separately.

Model	(mm) Inner diameter of tank	(mm) Height of tank	(m2) Sedi mental area	(r.p.m) Revolution of the rabble	(mm) Lifting height of the rabble	Driving motor model	(kW) Driving motor power	Liftion motor model	(kW) Lifting motor power	(kg) weight of the tank	(kg) Weight
GX-3.6	3600	1700	10.2	1.1	200	Y100L-6	1.1	PZ0.8AB	0.8	2829	6650
GX-5.18	5182	2134	21	0.8	300	Y132Mi-6	4	PZ0.8AB	0.8	5340	10460
GX-7.5	7500	2800	44.1	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	10258	17320
GX-9	9000	2800	63.6	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	15980	23680
GX-12	12000	3600	110	0.35	300	Y132M-4	7.5	Y100U-4	2.2	25589	42756
GX-15	15000	4000	177	0.15	300	YCT200-4B	7.5	Y112M-6	2.2	36050	59000
