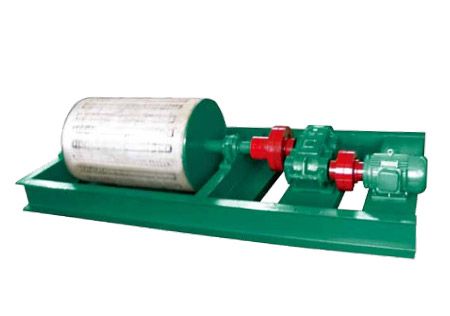

Dry magnetic roll

[Catalog:Magnetic plant] [Date:2017-11-7 12:08:25] [Hits:] [Return]

The surface of the cylinder may be packed and sticked with ultra anti-abrasive rubber.

Model	Diameter or the drum (mm)	Length of the drum (mm)	Width of the belt (mm)	Average magnetic field intensity on the surface of the drum (mT)	Allowed torque moment (N.m)	Particle size of separated materials (mm)	Capacity (t/h)	Weight (kg)
CT-0404	410	465	400	150-160	1300	10-40	0-30	250
CT-0505	520	500	400	150	1300	10-40	20-40	500
CT-0506	520	600	500	150	2100	10-40	40-60	600
CT-0507	520	750	650	150	2120	10-40	60-80	700
CT-0707	750	750	650	＞160	2860	10-60	80-100	1200
CT-0709	750	950	800	＞160	5500	10-60	90-110	1620
CT-0816	800	1600	1400	＞160	9760	10-60	100-150	2850
CT-1010	1000	970	800	200-210	5590	10-100	150-200	3410
CT-1012	1000	1170	1000	＞200	10680	≤100	200	4010
CT-1014	1000	140	1200	＞200	12810	≤100	200	4600
CT-1016	1000	1600	1400	160-210	14920	10-100	150-200	5200
CT-1210	1200	970	800	160-210	8380	10-100	150-200	4380
CT-1212	1200	1170	1000	＞160	10470	≤100	200	5280
CT-1214	1200	1400	1200	＞160	12570	≤100	200	6070
CT-1216	1200	1600	1400	＞160	14580	≤100	200	6670
CT-1218	1200	180	1600	＞160	166200	≤100	200	7260
CT-1412	1400	1200	1000	＞160	16000	≤120	200	6000
CT-1414	1400	1400	1200	＞160	20000	≤120	200	7100
CT-1416	1400	1600	1400	400	25000	~400	300	9800
CT-1518	1500	1800	1600	≥450	30000	~400	600	14000
